ONE V - Brass
ONE V  Brass
Brass is a copper-zinc alloy. The use of Brass has a long history in instrument making due to malleable properties and excellent acoustic characteristics.
In terms of tonality, it can be seen as the most versatile material and can help bringing even a plain and dull sounding instrument to life.

  • SOUND CHARACTERISTICS

    • rich, vibrant and lively sound
    • balanced, very harmonic overtones
    • very colorfull, clear and lasting sustain
    • increased transparency and string separation

  • MATERIAL & FINISH

    Materials


    Body: Brass

    Saddles: "V", Brass (optional: Stainless Steel)

    Intonation Screws: Brass (optional: Stainless Steel, Titanium)

    Thumbwheel: Brass

    Thumbwheel Post: Brass


    Finishes

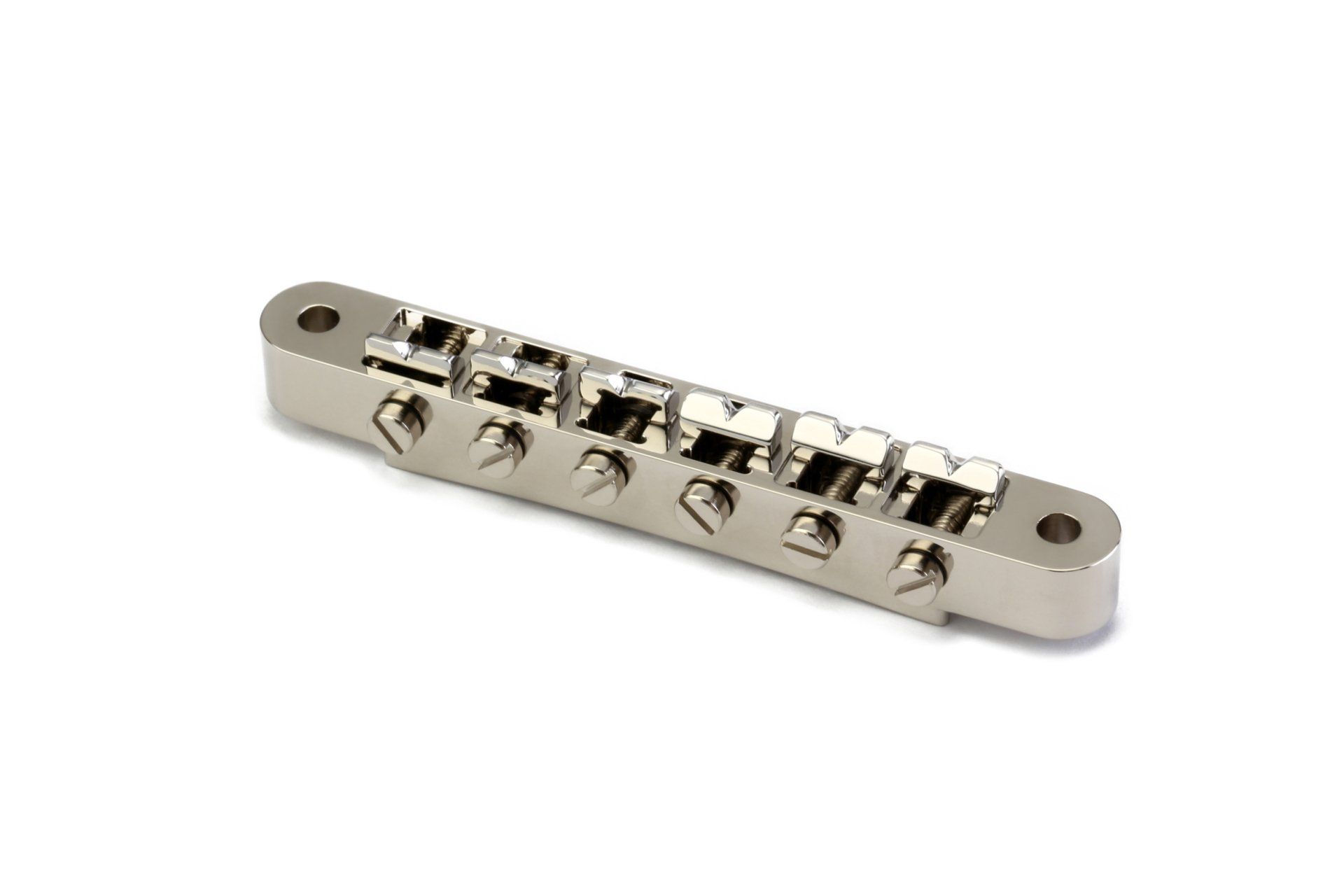

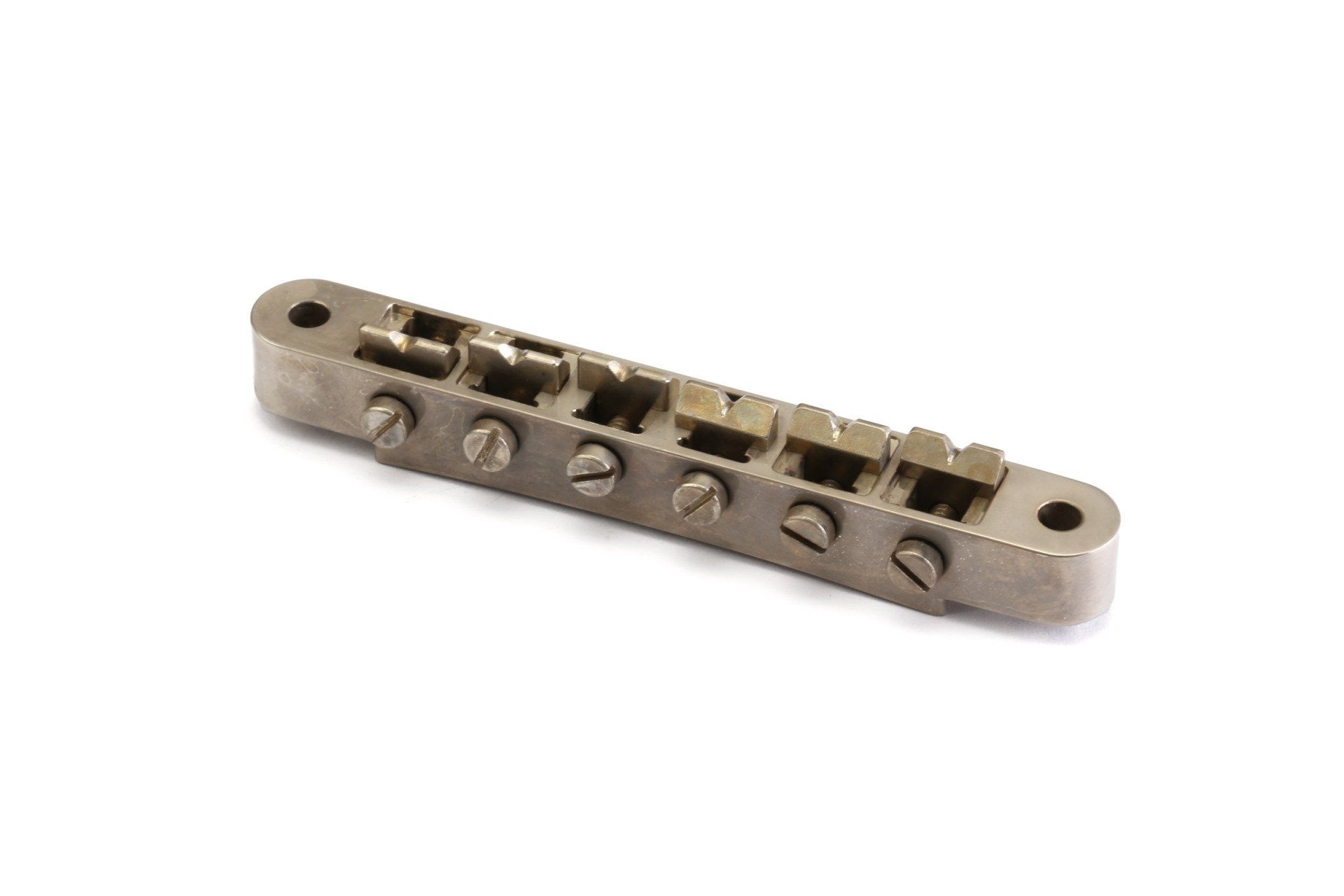

    Nickel: authentic electrolytic high-gloss Nickel plating, high gloss or with authentic patina (aged)

    Gold: 24k true gold plating, high gloss or with authentic patina (aged)

    Black: black chrom plating. high gloss

  • FACTS & FIGURES

    • Body size: 85 x 11 x 11mm (total hight with installed saddles = 15.1mm)
    • Post spacing: 74mm (2-29/32")
    • String spacing: 10,4mm / 52mm (e - E)
    • Fretboard radius: 12"
    • Weight: 65g
    • Threads: Intonation screws 4-40 UNC, thumbwheel and posts 6-32 UNC or M4

V-Saddles

R=12“ P r ecis e , a c cu r a t e alignme n t du t o e x clusi v e cus t om c om p one n ts C i r clip • 1,5 mm sp r ing s t eel I n t on a tion S c r e w • 4/40 UNC • m a t e r ials and pl a tings • F a t - F l a t 50s S addles 74 mm (2-29/32“) 52 mm 10.4 mm due t o v e r y small milling r adiuses and m a t ching saddle c o r ners I nc r eased R ange of I n t on a tion F a t- F l a t 50s S addles T hum b wheel and p ost • • • • • •
  • SAFE AND TIGHT TONE

    All strings naturally have a perfect, safe and tight contact surface to the saddles and create a perfect fusion to the bridge and hence to the guitar body. Great tone and tuning stability guaranteed.


    This bridge regularly comes with Nickel- , Chrome plated V-Saddles made of Brass. To meet your functional or tonal needs even more, you are invited to choose from diverse materials or coatings optionally.

  • FITTING ALL STRINGS

    The deep smart designed V-grooves just have the right fitting for all string gauges.  No matter if you prefer very light, extremely heavy or mixed sets of strings, the V-saddles take them all.

    This also makes them ideal for players who want to try or change different string gauges from time to time.

  • PLAYING FEARLESS

    Good news! Even the most extreme bendings are no longer a risk for breaking strings!



    A perfectly rounded contact area prevents your strings from sticking and improves tuning stability and saves your strings.
