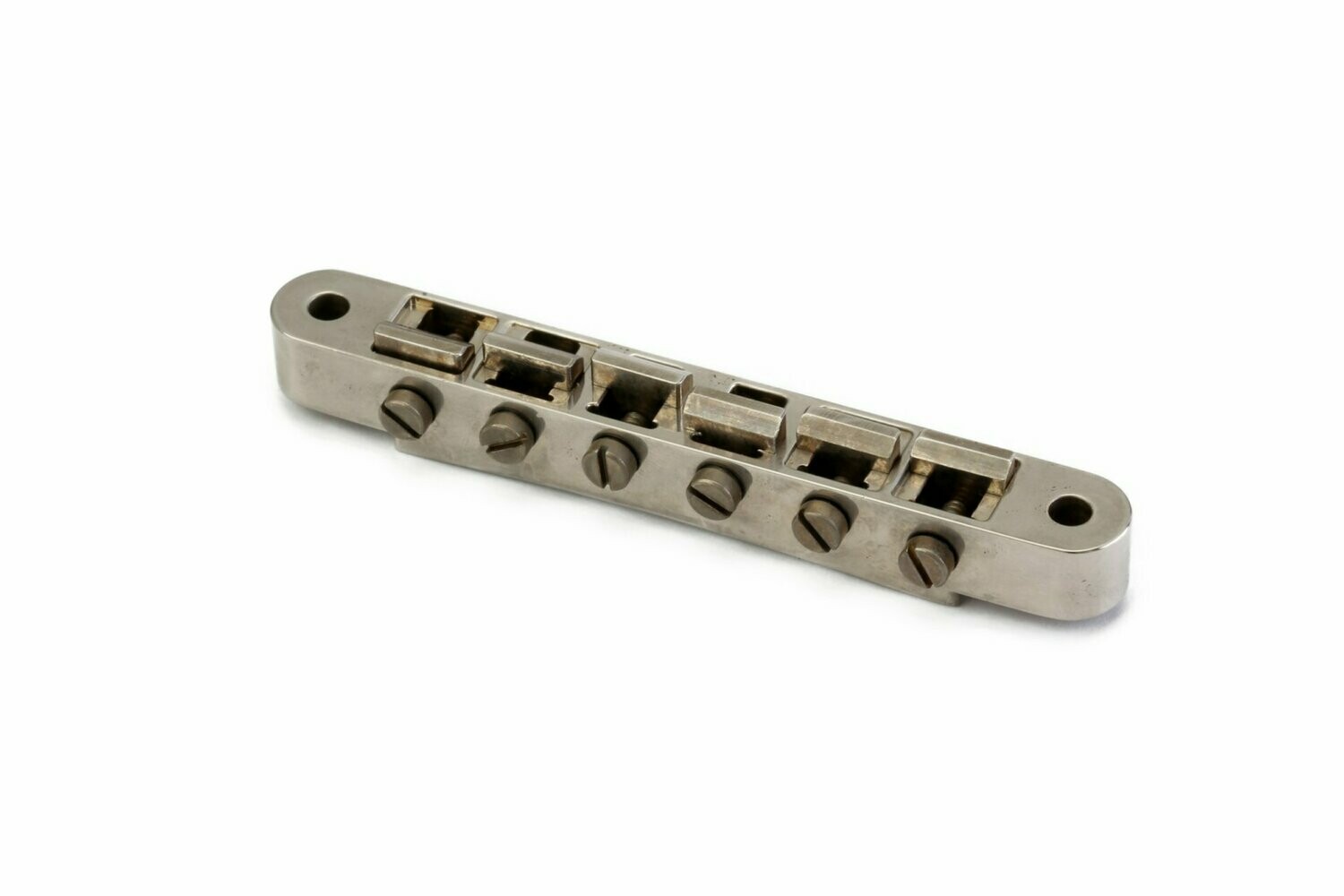

"ONE 50" - Brass - Nickel, aged

KMS "ONE 50" Brass

In addition to preserving the look and feel of classic vintage gear, all functional improvements the ONE bridge provides have been carefully designed in a discreet and unobtrusive manner. We call it contemporary vintage.

Brass is a copper-zinc alloy. The use of Brass has a long history in instrument making du to malleable properties and excellent acoustic characteristics. In terms of tonality, it can be seen as the most versatile material and can help bringing even a plain and dull sounding guitar to life.

The "ONE 50" comes with Fat-Flat-50 Saddles which have a larger string contact area and more mass like Gibson ®ABR-1® saddles originally had in the 50s. The increased string to saddle impact creates an overall bigger tone and you will profit from raising sustain. Brass saddles are provided as standard and can be considered as the first choice in most cases. To form your tone in an even more specific direction, you are invited to choose from diverse materials or coatings optionally.

Sound characteristics

• rich, vibrant and lively sound
• balanced, very harmonic overtones
• very colorful, clear and lasting sustain
• increased transparency and string separation

Materials and Finishes

• Body: Brass, Nickel, aged (authentic electrolytic high-gloss Nickel plating)
• Saddles, FF50s: Brass, Nickel, aged (optional: Stainless Steel)
• Intonation Screws: Brass, Nickel, aged (optional: Stainless Steel, Titanium / natural ,without plating)
• Thumbwheel: Brass, Nickel, aged
• Thumbwheel Post: Brass, Nickel, aged
• Circlip: Spring Steel
• Washer: Teflon (countersunk)

Facts and Figures

• Body size: 85 x 11 x 11mm (total hight with installed saddles = 14mm)
• Post spacing: 74mm (2-29/32“)
• String spacing: 10,4mm / 52mm (e - E)
• Fretboard radius: 12“
• Weight: 65g
• Threads: Intonation screws 4-40 UNC, thumbwheel and posts 6-32 UNC
• Livetime Warranty*

REPRODUKTIVITY GUARANTEED

All parts are precision CNC machined from solid, most appropriate, custom made quality materials.

• top dimensional accuracy
• perfect plane surfaces
• no porous structures through air pockets
• customization possible

Unnotched saddles are provided as standard. Pre-notching can be ordered optionally.

*Since the "The ONE" is a top quality precision product and we from K.M.S. are firmly convinced of its high performance and its resilience, we provide a lifelong guarantee for the bridge body
