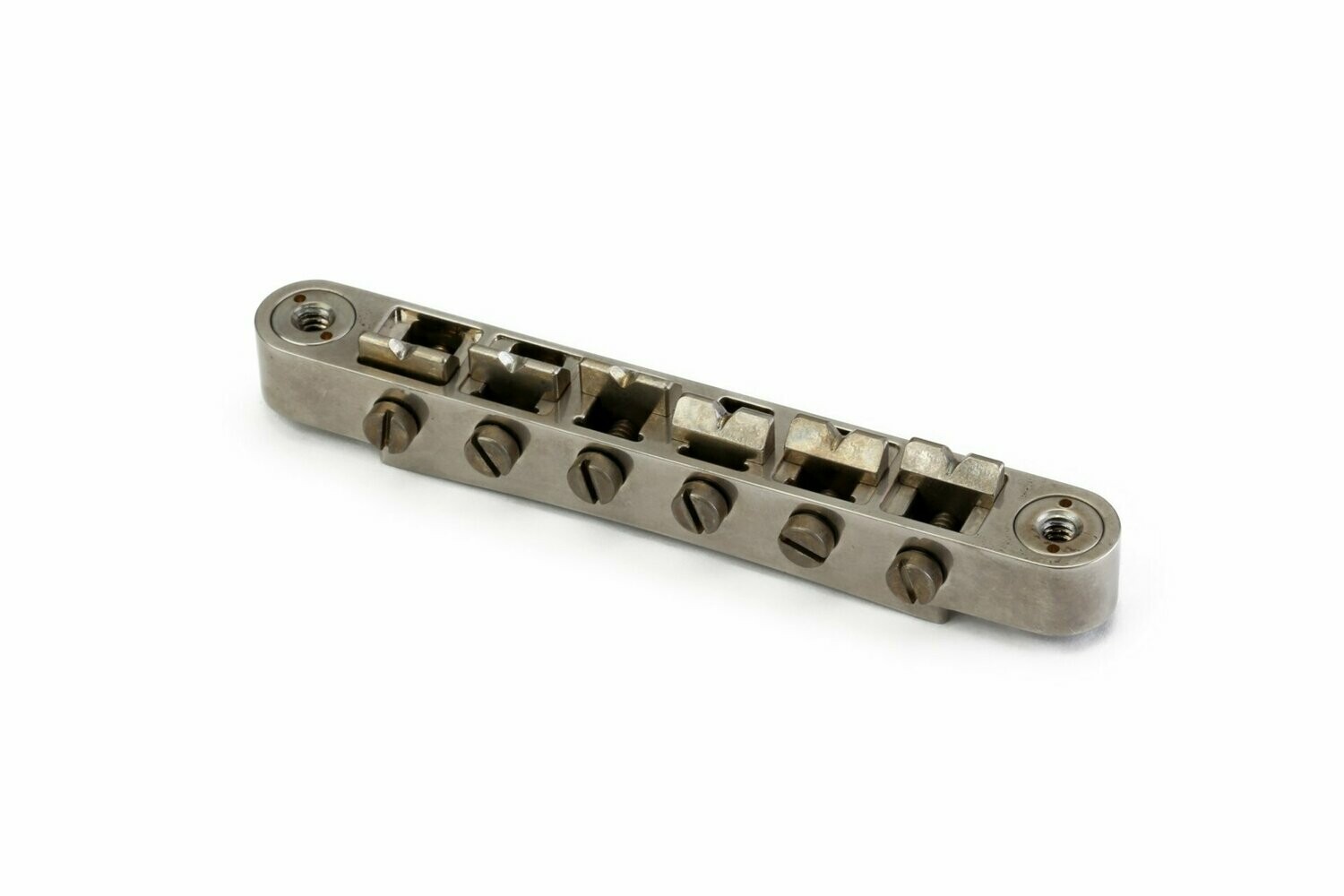

"VINTAGE ONE 2" - ZAMAC - Nickel, aged

"VINTAGE ONE 2" ZAMAC

Nearly identical to our „ONE“ Tune-O-Matic bridge but with an additional locking feature and usually equipped with our special coated V-Saddles, this bridge represents the ultimate solution by using a Tune-O-Matic bridge in combination with a Bigsby® Vibrato. Tone and tuning stability on the highest-level.

While the conical 2-hole nuts are holding the bridge in place and prevents it from wobbling around, the special coated and deep notched V-Saddles are guaranteeing a smooth back and forth gliding of the strings.

The V-Saddles are coated with an extra hardened electroless Nickel layer, which has comparable lubrication and hardness properties like hard chrome, but with significant better layer characteristics inside the notch itself. For an ultimate experience and durability, you can furthermore choose an extra DLC (Diamond Like Carbon) layer on top, wich provides the most advanced technology in terms of hardness and long-term lubrication available.

Even though the „ONE 2“ is initially designed for the usage with tremolo (vibrato) systems, you can use this bridge with a stoptail as well and benefit from its additional performance, tone and tuning stability.

Sound characteristics

• real vintage tone
• full and rich sound with easy response
• well-balanced tone with warm and meaty sustain
• beautiful, sweet overtones
• increased transparency and string separation

Performance and tuning stability

• bridge fixation due to locking mechanism
• deep notched V-Saddles
• advanced low-friction hard coatings

Materials and finishes

• Body: ZAMAC, Nickel, aged
• Conical Nuts: Brass, Nickel, aged
• Saddles "V": Brass, tempered chem. Nickel (VHN 1000), excellent hardness and lubrication
  • Optional: DLC coating over tempered chem. Nickel (VHN 2800), extreme hardness and long-term lubrication
• Intonation Screws: Brass, Nickel, aged (optional: Stainless Steel, Titanium / natural)
• Thumbwheel: Brass, Nickel, aged
• Thumbwheel Post: Brass, Nickel, aged
• Circlip: Spring Steel
• Washer: Teflon (countersunk)

Facts and figures

• Body size: 85 x 11 x 11mm (total hight with installed saddles = 15.1mm)
• Post spacing: 74mm (2-29/32“)
• String spacing: 10,4mm / 52mm (e - E)
• Fretboard radius: 12“
• Weight: 55g
• Threads: Intonation screws 4-40 UNC, thumbwheel and posts 6-32 UNC
• Livetime Warranty*

REPRODUKTIVITY GUARANTEED

All parts are precision CNC machined from solid, most appropriate, custom made quality materials.

• top dimensional accuracy
• perfect plane surfaces
• no porous structures through air pockets
• customization possible

Unnotched saddles are provided as standard. Pre-notching can be ordered optionally.

*Since the "The ONE" is a top quality precision product and we from K.M.S. are firmly convinced of its high performance and its resilience, we provide a lifelong guarantee for the bridge body
